FCC1720 Series Common Mode Chokes
FCC1720 Series Current-compensated Frame Core Power Line Double Chokes
FEATURES:

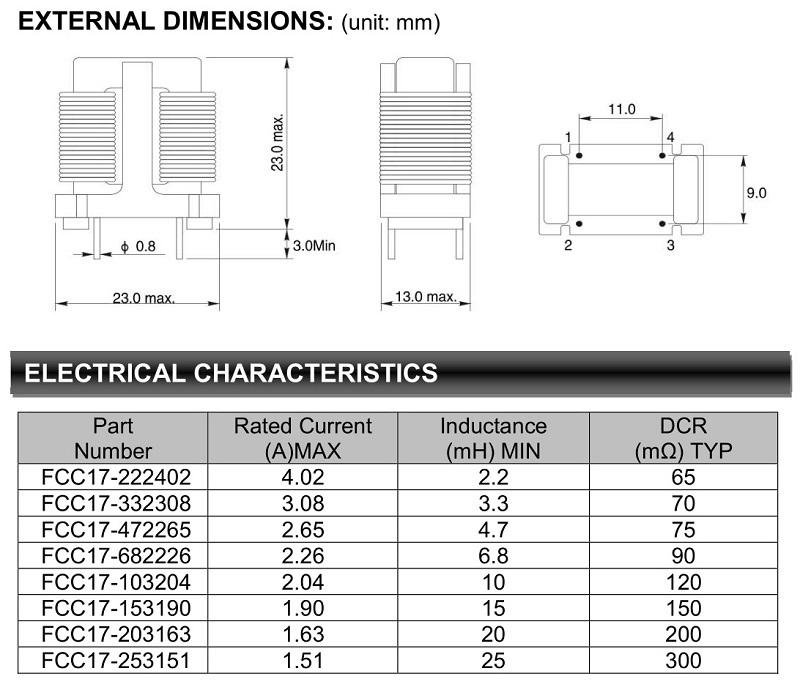

·Core Size: FC1720
·Shape: Vertical
·Rated Current: 1.51~4.02A
·Insulation voltage: 1500VAC,2S(line-line)
·Rated voltage: 250VAC max@40°C
·Design complies with EN 60938-2 (VDE 0565-2), RoHS-compatible
Current-compensated Frame Core Double Choke Coils
Current-compensated Frame Core Power Line Chokes
Frame Core Current-compensated Common Mode Choke Coils
FCC1720 Type Power Line Chokes with Frame Core and Base
Applications：
*Suppression of common-mode and differential-mode interferences
*Electronic ballasts for lamps
*High power switch-mode power supplies for consumer electronics
