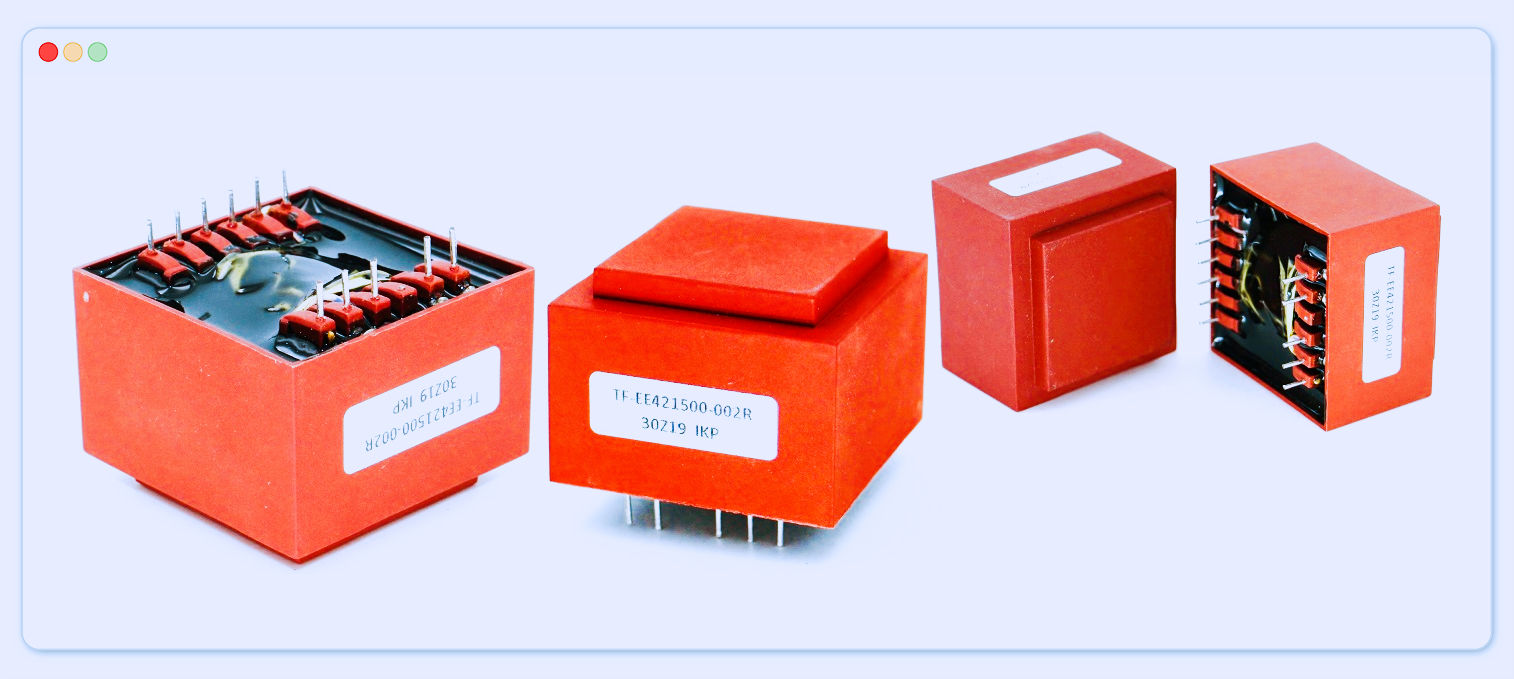

Horizontal Encapsulated Power Transformer – EE42 Type
Horizontal Encapsulated Power Transformer – EE42 Type
FEATURES:
·Operating Frequency: 50~200KHz
·Low-cost
·Compressive strength: 4500V
·Temperature resistance level: 130 ℃ / B
·CE, UL, RoHS certification
FEATURES:
Core material: high quality cold rolled silicon steel sheet
High frequency high voltage boost pulse transformer
Encapsulated transformers with many specifications
Flame retardant shell
Great durability
Excellent stability
Excellent flame retardant material
Energy efficient
Smooth output
Ultra-low noise
Wide working voltage range
Various voltage conversion possible
15% reduction in losses
Voltage: 220V / 115V
Frequency: 50 / 60Hz
PINS: 5P + 6P
APPLICATION:
Switching power supplies, LCD display power supplies, high-power UPS inverter power supplies, EV charging piles, artificial intelligence equipments, communication equipments, etc.
Physical and Electrical Performance Parameters:
| Type | Shape Structure | Dimension | Power range | |||||
| A | B | C | D | E | F | |||
| EE10 | Horizontal | 12.0Max | 10.8±0.5 | 12.4±0.5 | 2.5±0.2 | 2.5±0.3 | 10.5±0.5 | 4W Max |
| EE13 | 15.0Max | 13.5±0.5 | 13.85±0.5 | 2.5±0.2 | 2.5±0.3 | 10.2±0.5 | 6W Max | |
| EE16 | 17.5Max | 15.0±0.5 | 13.6±0.5 | 3.5±0.2 | 3.0±0.3 | 11.0±0.5 | 10W Max | |
| EE19 | 22.0Max | 112.4±0.5 | 17.4±0.5 | 4.0±0.2 | 3.0±0.3 | 12.5±0.5 | 15W Max | |
| EE22 | 24.0Max | 13.0±0.5 | 15.7±0.5 | 4.0±0.2 | 4.8±0.3 | 13.0±0.5 | 20W Max | |
| EE25 | 26.5Max | 17.3±0.5 | 19.4±0.5 | 4.0±0.2 | 5.0±0.3 | 14.0±0.5 | 25W Max | |
| EE30 | 32.0Max | 22.0±0.5 | 32.0Max | 4.0±0.2 | 5.0±0.3 | 25.0±0.5 | 145W Max | |
| EE40 | 34.0Max | 28.6±0.5 | 35.0Max | 4.0±0.2 | 5.0±0.3 | 25.8±0.5 | 350W Max | |
| EE42 | 42.0Max | 39.1±0.5 | 45.0Max | 4.0±0.2 | 5.0±0.3 | 37.8±0.5 | 450W Max | |
| EE55 | 58.0Max | 56.0±0.5 | 58.0Max | 4.0±0.2 | 5.0±0.3 | 40.0±0.5 | 500W Max | |
**We can design and manufacture customized part with specific requirement
