FCC2319 Series Common Mode Chokes
FCC2319 Type Power Line Chokes with Frame Core and Base
FEATURES:
·Core Size: FC2319

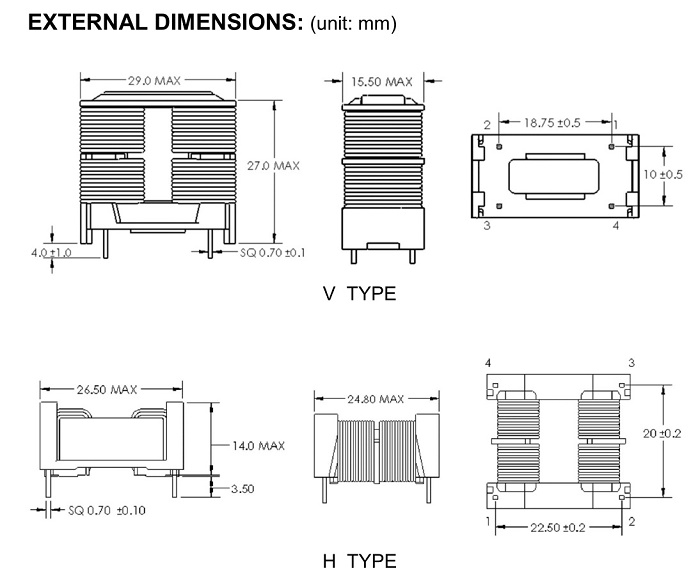

·Shape: Vertical, Horizontal
·Rated Current: 0.7~2.3A
·Insulation voltage: 1500VAC,2S(line-line)
·Rated voltage: 250VAC max@40°C
·Closed magnetic circuit with frame construction
Current-compensated Frame Core Double Choke Coils
Current-compensated Frame Core Power Line Chokes
Frame Core Current-compensated Common Mode Choke Coils
FCC2319 Type Power Line Chokes with Frame Core and Base
Applications：
*Suppression of common-mode and differential-mode interferences
*Electronic ballasts for lamps
*High power switch-mode power supplies for consumer electronics
| Part
Number |
Rated Current
(A)MAX |
Inductance
(mH) MIN |
DCR
(mΩ) TYP |
| FCC23H-103230 | 2.3 | 10 | 188 |
| FCC23H-153190 | 1.9 | 15 | 279 |
| FCC23H-273140 | 1.4 | 27 | 440 |
| FCC23H-393120 | 1.2 | 39 | 696 |
| FCC23H-473110 | 1.1 | 47 | 804 |
| FCC23H-683090 | 0.9 | 68 | 1100 |
| FCC23H-104070 | 0.7 | 100 | 1810 |
| FCC23V-103230 | 2.3 | 10 | 188 |
| FCC23V-153190 | 1.9 | 15 | 279 |
| FCC23V-273140 | 1.4 | 27 | 440 |
| FCC23V-393120 | 1.2 | 39 | 696 |
| FCC23V-473110 | 1.1 | 47 | 804 |
| FCC23V-683090 | 0.9 | 68 | 1100 |
| FCC23V-104070 | 0.7 | 100 | 1810 |
