3-phase High Current Reactor for Solar Inverter

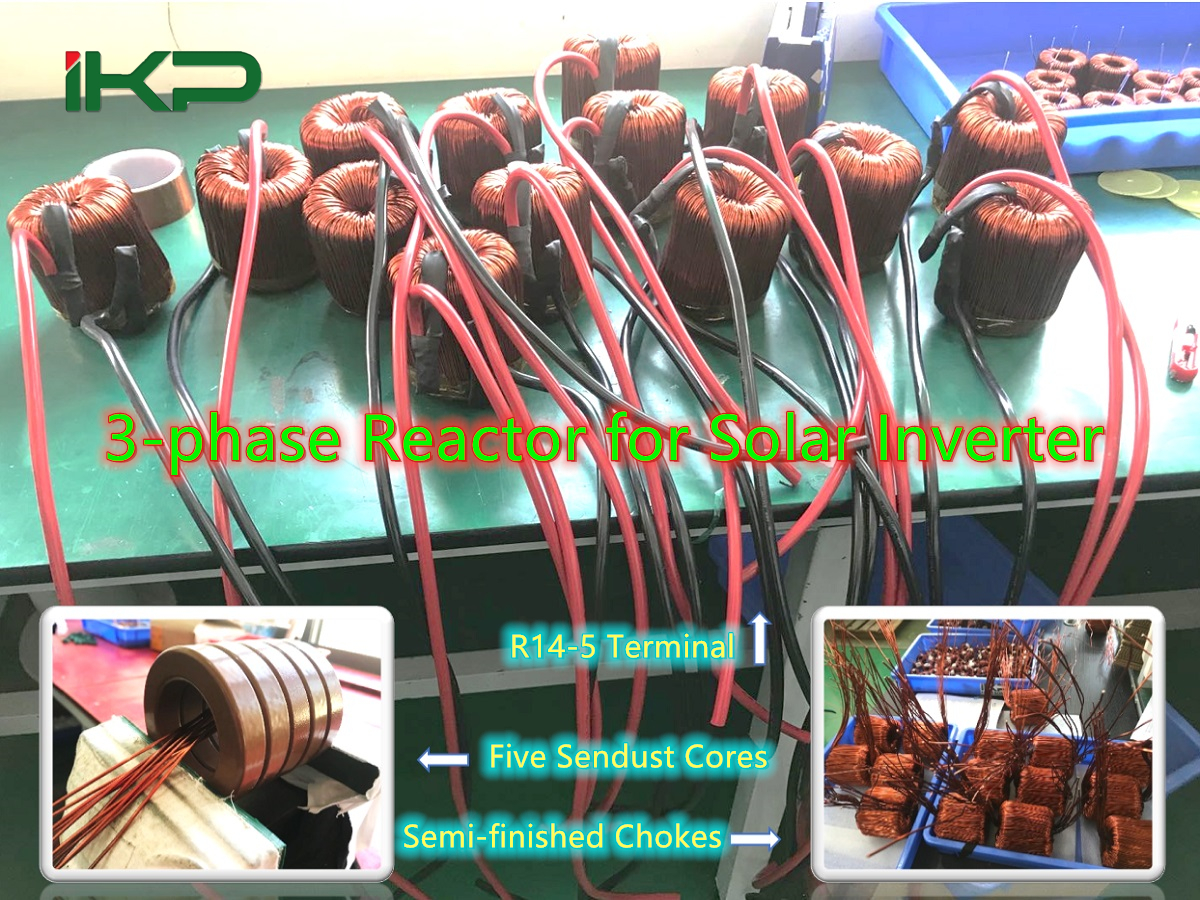

14 copper wire winding on 5 sendust cores, 0.4mH 80A high current power choke reactors for solar inverter.
FEATURES:
·Organic silicone potting, soft material, good shock absorption and protection effect
·The physical and chemical properties are stable
·High temperature and low temperature resistance
·Excellent electrical performance and insulation ability, long service life
·The soft potting compound is easy to take out
Product Details:
Brand: IKP
P.N: LM781600-001R
Core: Sendust core*5
Inductance: 0.4mH
Rated current: 80A
Copper wire: Φ1.5mm*14
Winding: 1 start, 2 finish
Insulation system: Class B 130°C
Storage temperature: -40°C ~80°C
Operation temperature: -40°C ~130°C
OCL: pins(1-2)=0.4mH±10% @1kHz, 0.1v
DCR: pins(1-2)=15.0mΩ MAX
Hipot: WDG to CASE 1.5kVac 60Hz 60Seconds 3mA MAX, No flashover
Layer insulation: 1.0kWac no flashover

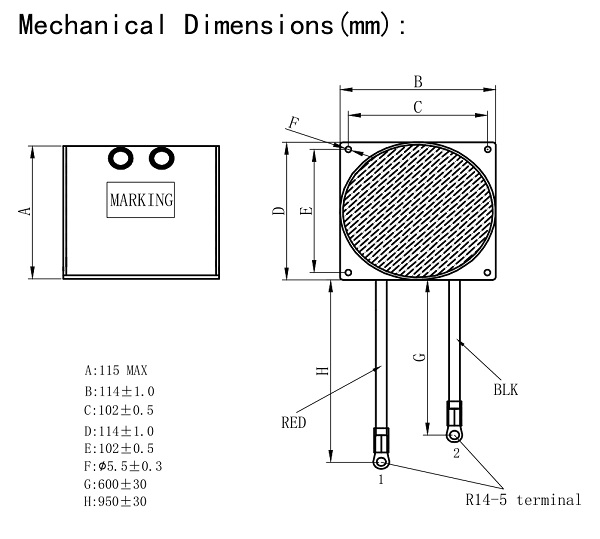

Electrical and mechanical specifications 100% tested
RoHS compliant compatible
Application:
Solar inverter, Wind inverter, PFC filter, Choke coils, EV inverter, ABS system for car, car generators, inverter air conditioners, etc.
