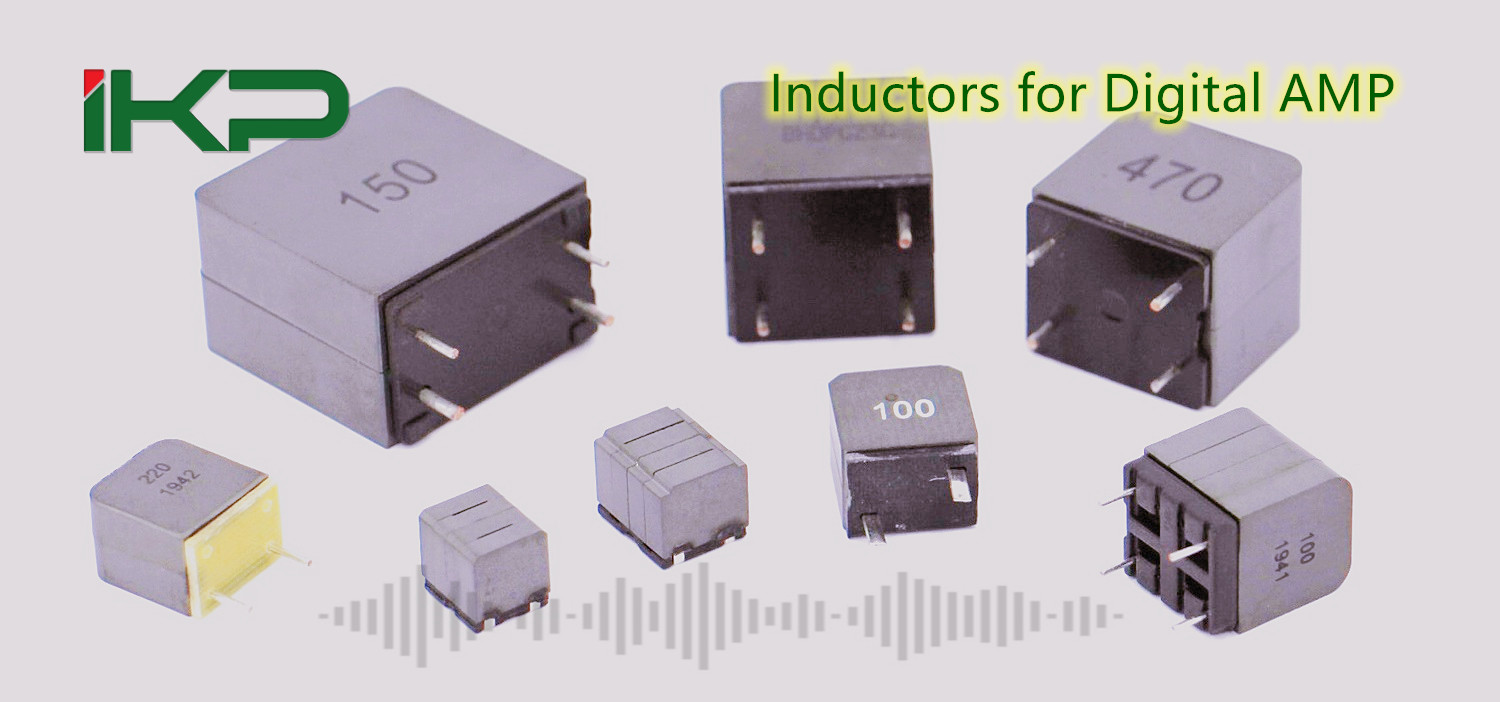

DP2320 Series Shielded Power Inductor for Digital Amplifier
DP2320 Series Shielded Power Inductor for Digital Amplifier
FEATURES:
·•Special magnetic shielding structure
·•Strong anti-interference ability
·•Small size, low noise and low radiation
·•Wide frequency range, small parasitic capacitance
·•Best design with high sound quality and low distortion
FEATURES:
- Special magnetic shielding structure
- Strong anti-interference ability
- Small size, low noise and low radiation
- High current, low DC resistance
- Wide frequency range, small parasitic capacitance
- Excellent heat resistance, easy to weld
- Best design with high sound quality and low distortion
- Lead-free product, UL / CE / ROHS compliant
APPLICATIONS:
Audio equipment, LCD television set notebook PC, OA equipment digital camera, portable communication equipment, DC-DC converter, etc.
| PART NO. | INDUCTANCE | DCR (MAX) | ISAT(MAX) | IRMS(MAX) |
| DP2320-100M | 10.0±20% | 9.6mΩ | 43.0 | 14.0 |
| DP2320-120M | 12.0±20% | 9.6mΩ | 36.0 | 14.0 |
| DP2320-150M | 15.0±20% | 9.6mΩ | 31.0 | 14.0 |
| DP2320-180M | 18.0±20% | 9.6mΩ | 26.0 | 14.0 |
| DP2320-220M | 22.0±20% | 9.6mΩ | 22.0 | 14.0 |
| DP2320-330M | 33.0±20% | 9.6mΩ | 12.0 | 14.0 |
