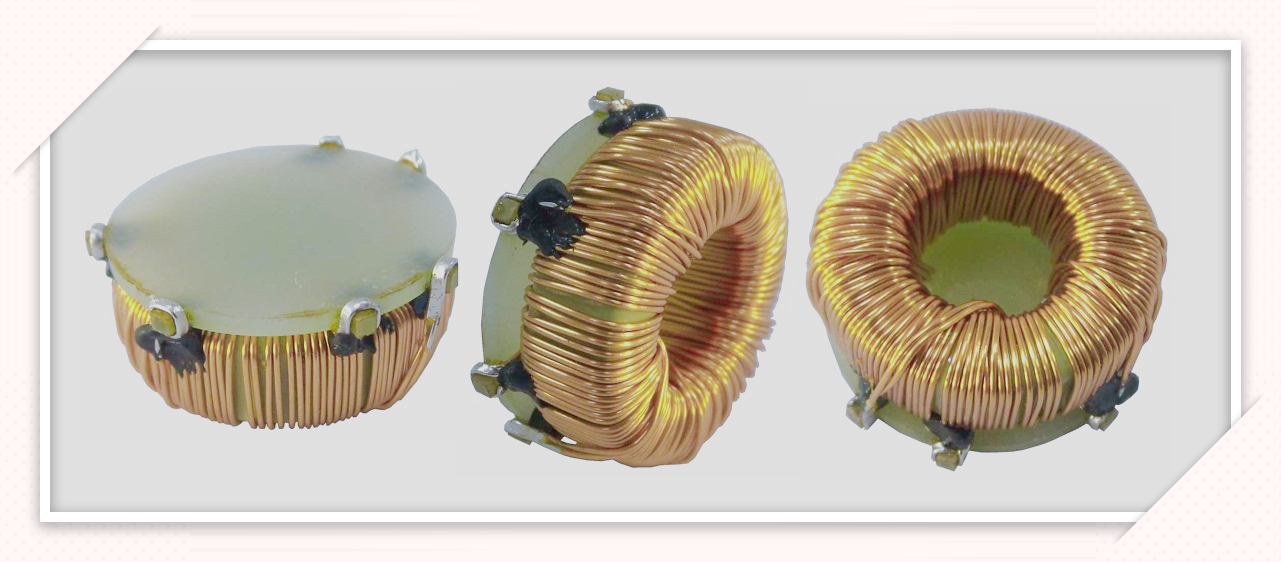

106-26 EMC PFC Choke Coil
Horizontal 106-26 type EMC PFC high current power inductor
FEATURES:
·20 years of professional design experience
·Very cost-effective
·Process control excellence
·Accept small batch customization
·Stable and reliable quality
·High current and high efficiency
·Excellent EMC / EMI performance
FEATURES:
20 years of professional design experience
Very cost-effective
Source factory
Process control excellence
Accept small batch customization
Stable and reliable quality
High current and high efficiency
Excellent EMC / EMI performance

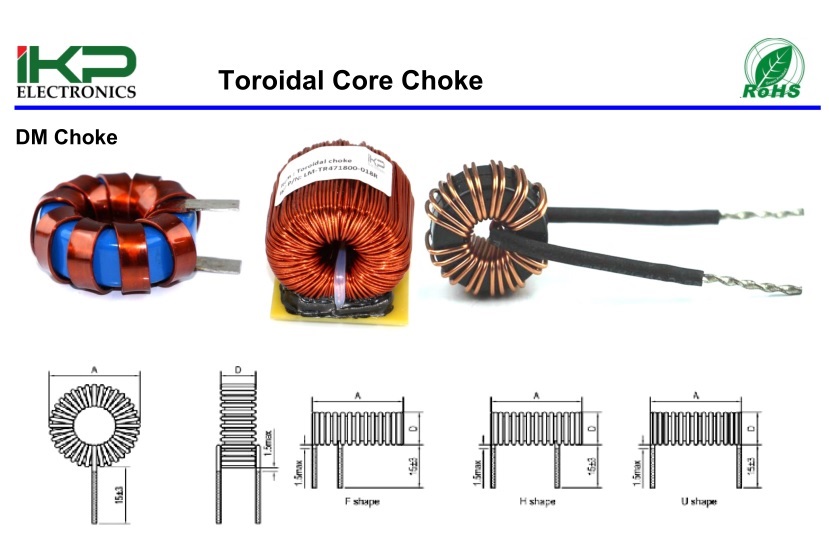

Electrical performance:
| Model | Installation Structure | Electrical Characteristics | ||||
| Length, Outer diameter (mm) | Width
(mm) |
Height
(mm) |
Foot Pitch
(mm) |
Inductance | Ampacity | |
| T10*6*5 | 13 | – | 5 | – | 250uH | 995mA |
| T13*7.5*5 | 17 | – | 8 | – | 320uH | 212mA |
| T16*9*5 | 20 | – | 8.5 | – | 0.9mH~1.6mH | 377mA |
| T18*10*7 | 20 | – | 9 | – | 750uH | 589mA |
| T25*15*12 | 30 | – | 16 | – | 1.8mH | 2355mA |
| T27*14*8 | 32 | – | 12 | – | 260mH | 2355mA |
| T27*14.5*9.4 | 32 | – | 12 | – | 90uH | 1507mA |
| T35*23*9 | 39 | – | 13 | – | 70uH | 5298mA |
