Surface Mount Fixed SMD/SMT Power Inductor
1.5uH to 82uH Surface Mount Fixed Shielded Contracture Power Inductor with Round/Flat Wire Coils
FEATURES:
·Round wire or flat wire winding
·Low profile and smallest possible footprint
·Inductance range: 1.5uH to 82uH
·RoHS/UL/REACH/CE complaint
·Operation temperature: -40~130°C
·Tolerance range: ±20%
FEATURES:
SMD/SMT power inductor
Round wire or flat wire winding
Surface mount shielded power inductor
Low profile and smallest possible footprint
Inductance range: 1.5uH to 82uH
Standard package: reel and carton box
RoHS/UL/REACH/CE complaint
Current rating: up to 65Apk

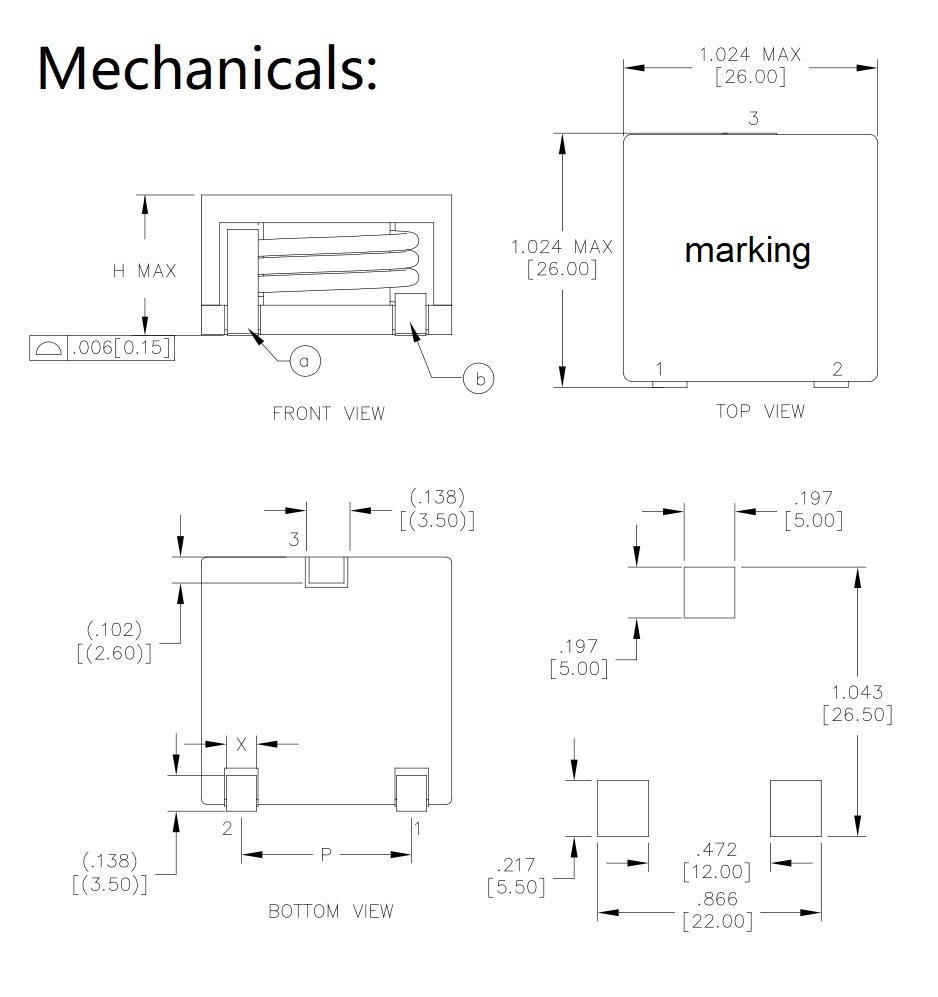

Height:14.8mm (MAX)
Footprint: 26mm*26mm (MAX)
Operation temperature: -40~130°C
Tolerance range: ±20%
APPLICATIONS:
Widely use in digital camera & scanner/DC-DC converter/power supply for VTR /LCD monitor/portable terminal equipment/Notebook/PC and peripheral equipment etc.
SPECIFICATIONS:
| Part No. | Rated Current
(A) |
Inductance
(uH±20%) |
DCR
(mΩ MAX) |
Core Loss Factor |
| LF-PG2613-1R5 | 50 | 1.5 | 0.85 | 27.9 |
| LF-PG2613-2R5 | 45 | 2.5 | 1.2 | 31 |
| LF-PG2613-4R7 | 35 | 4.7 | 1.8 | 43.7 |
| LF-PG2613-6R8 | 30 | 6.8 | 2.0 | 50.6 |
| LF-PG2613-100 | 24.5 | 10 | 3.15 | 62 |
| LF-PG2613-180 | 18.5 | 18 | 5.0 | 83.6 |
| LF-PG2613-220 | 17 | 22 | 5.5 | 90.9 |
| LF-PG2613-330 | 13.5 | 33 | 10.5 | 111.5 |
| LF-PG2613-470 | 11 | 47 | 12.5 | 134.4 |
| LF-PG2613-680 | 9.5 | 68 | 15.0 | 168.5 |
| LF-PG2613-820 | 8.5 | 82 | 22.0 | 179.3 |
IKP ELECTRONICS CO., LTD.
