3 Phase R Core Power Transformer
Silicon Steel Sheet Core R Type Three Phase Power Transformers Rated power: 0.25 to 60VA Input: double 110V, 115V, 1...
Product Description:
·Small size, low weight, high efficiency
·Low level of radiated magnetic field
·Work frequency: 50/60 Hz
·Available in a variety of sizes
·Independent intellectual property rights
·Customized specifications are accepted
Silicon Steel Sheet Core R Type Three Phase Power Transformers
Rated power: 0.25 to 60VA
Input: double 110V, 115V, 120V
|
Model |
Power (VA) |

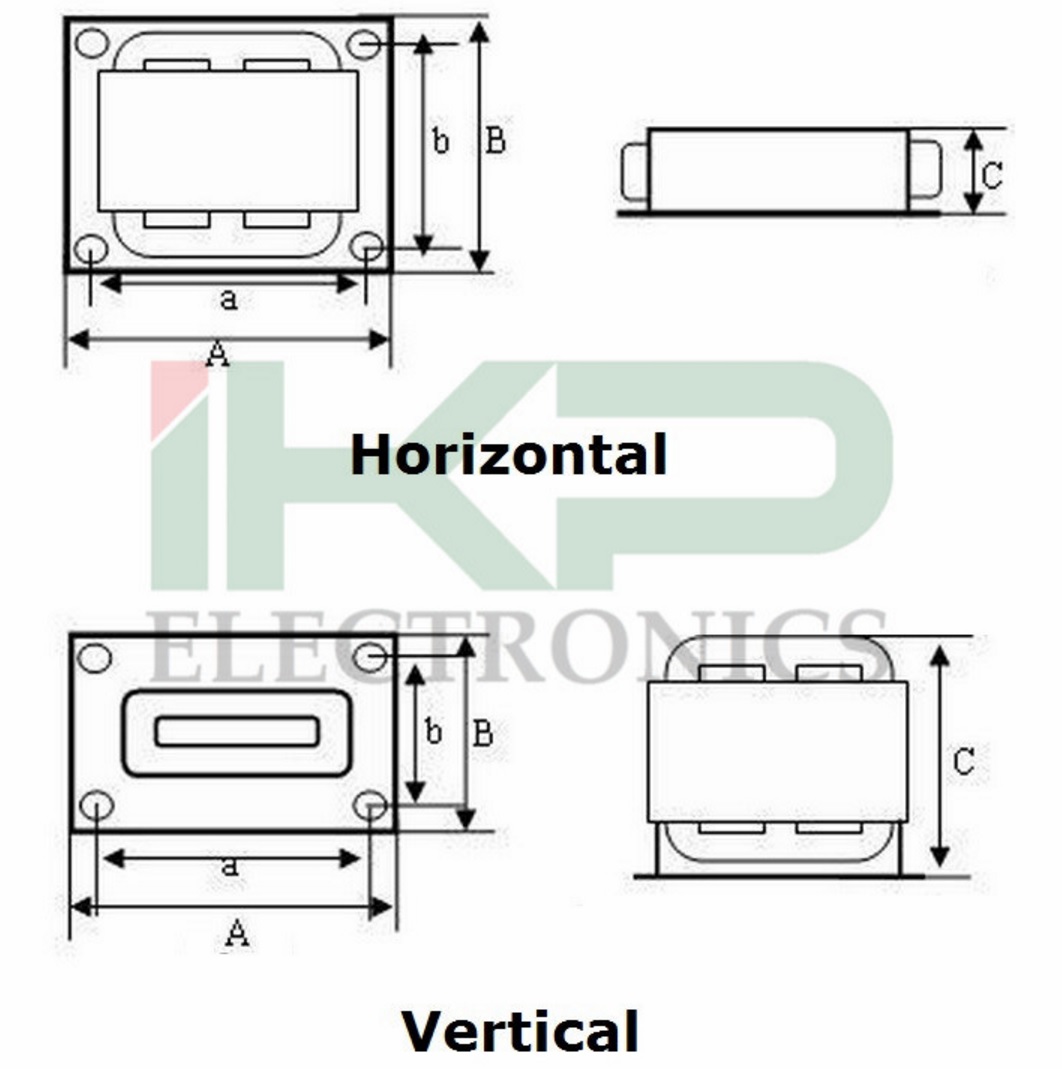

Dimensions(mm) |
Mounting Dimensions(mm) |
Weight (kg) |
|||||
|
A |
W |
X |
E |
F |
G |
T |
|||
|
R-10 |
15 |
74 |
61 |
37 |
68.4 |
48 |
4*5 |
1.0 |
0.4 |
|
R-20 |
25 |
81 |
70 |
39 |
55 |
50 |
M3 |
1.0 |
0.5 |
|
R-30 |
40 |
96 |
77 |
42 |
70 |
60 |
5 |
1.0 |
0.7 |
|
R-40 |
50 |
98 |
80 |
44 |
70 |
60 |
5 |
1.0 |
0.9 |
|
R-50 |
60 |
101 |
92 |
48 |
75 |
65 |
5 |
1.0 |
1.0 |
|
R-80 |
100 |
124 |
90 |
52 |
90 |
70 |
5 |
1.2 |
1.4 |
|
R-100 |
120 |
124 |
103 |
55 |
100 |
80 |
5 |
1.2 |
1.7 |
|
R-160 |
180 |
138 |
115 |
63 |
100 |
85 |
5 |
1.6 |
2.6 |
|
R-260 |
280 |
156 |
121 |
66 |
130 |
95 |
5 |
1.6 |
3.1 |
|
R-320 |
380 |
163 |
128 |
70 |
135 |
95 |
5 |
1.6 |
3.8 |
|
R-600 |
600 |
182 |
145 |
85 |
142 |
100 |
8 |
1.6 |
6.5 |
|
R-1000 |
1000 |
222 |
172 |
99 |
180 |
140 |
8 |
2.6 |
10.5 |
**IKP Electronics Co., Ltd.**
