Horizontal Rod Core Power Inductor with Double Windings and Special Base
Horizontal Rod Core Power Inductor with Double Windings and Special Base
APPLICATIONS:
Rod core power inductors are widely used in switching power supply and other electronic equipment, such as the buck converter, LCD, notebook computer, handheld notebook, digital products, network communication etc.

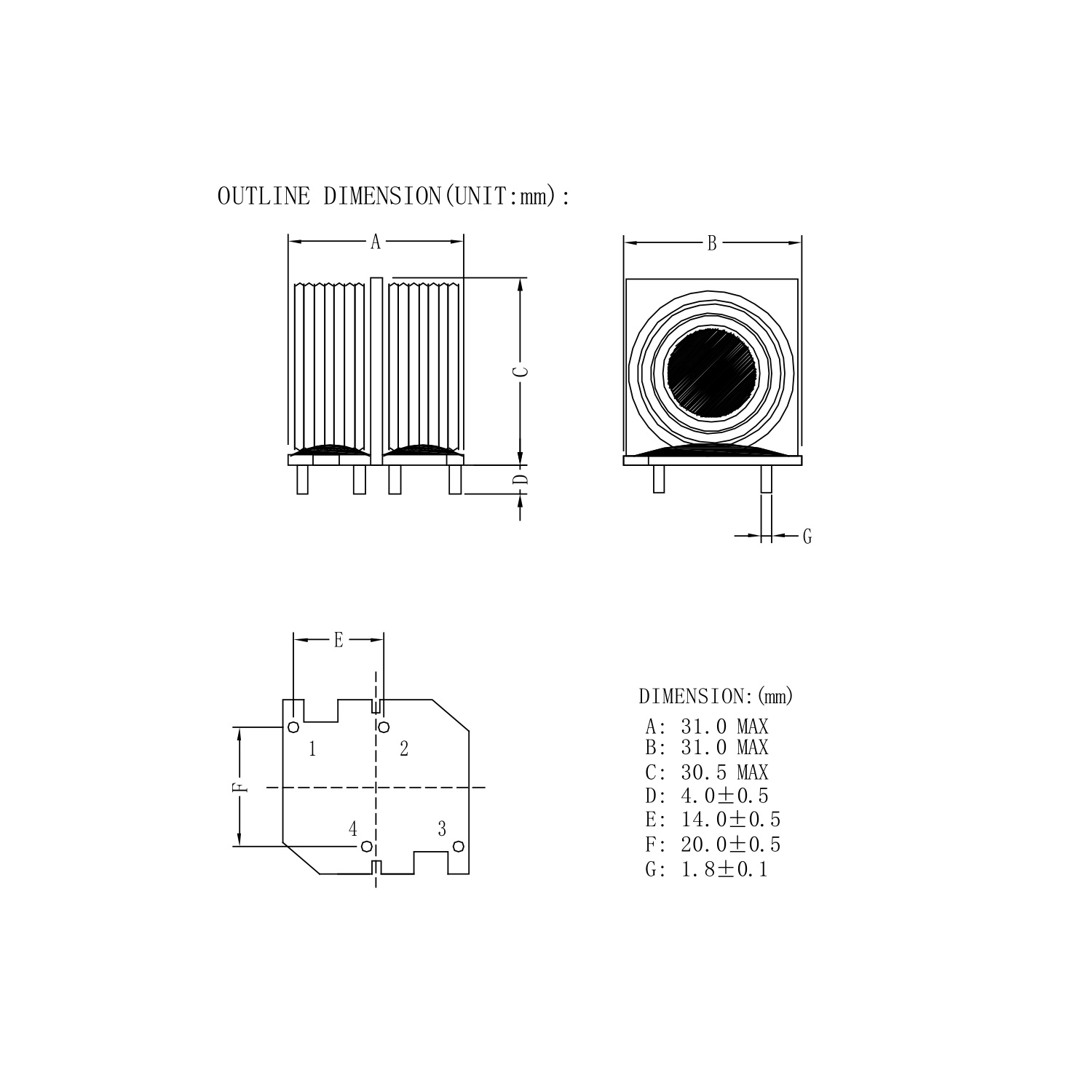

ELECTRICAL SPECIFICATIONS:
Type | Amax | Bmin | Crel | Dmax | E±0.05 | Fmax |
R0205 | 6 | 5 | 5 | 3.5 | 0.2-2.0mm | 1.5 |
R0310 | 11 | 5 | 8 | 5 | 0.2-2.0mm | 1.5 |
R0415 | 16 | 5 | 12 | 5.5 | 0.2-2.0mm | 1.5 |
R0520 | 21 | 5 | 18 | 7 | 0.2-2.0mm | 1.5 |
R0630 | 31 | 5 | 28 | 9.5 | 0.2-2.0mm | 1.5 |
R0820 | 23 | 5 | 18 | 16 | 0.2-2.0mm | 1.5 |
R1040 | 42 | 5 | 38 | 24 | 0.2-2.0mm | 1.5 |
** We can design and manufacture customized part with specific requirement.
Physical and Electrical Performance Parameters:
Part No | Inductance(uH) | DCR(OHM )MAX | Rated Current(AMP) MAX | SRF(MHz) MIN | Wire Diameter(mm) | Ts | Weight(g/pcs) |
R0205-1R0K | 1 | 0.04 | 0.56 | 200 | 0.3 | 11.5 | 0.15 |
R0205-1R2K | 1.2 | 0.04 | 0.56 | 180 | 0.3 | 12.5 | 0.165 |
R0310-1R8K | 1.8 | 0.026 | 1.9 | 160 | 0.55 | 11.5 | 0.7 |
R0310-2R2K | 2.2 | 0.028 | 1.57 | 150 | 0.5 | 13.5 | 0.714 |
R0310-2R7K | 2.7 | 0.03 | 1.57 | 140 | 0.5 | 15.5 | 0.729 |
R0310-3R3K | 3.3 | 0.035 | 1.27 | 135 | 0.45 | 17.5 | 0.686 |
R0310-3R9K | 3.9 | 0.05 | 1 | 110 | 0.4 | 18.5 | 0.634 |
R0310-4R7K | 4.7 | 0.07 | 0.76 | 90 | 0.35 | 19.5 | 0.575 |
R0415-4R7K | 4.7 | 0.024 | 2.26 | 90 | 0.6 | 17.5 | 1.6 |
R0415-5R6K | 5.6 | 0.03 | 1.9 | 80 | 0.55 | 18.5 | 1.4 |
R0415-6R8K | 6.8 | 0.04 | 1.57 | 80 | 0.5 | 18.5 | 1.4 |
R0415-8R2K | 8.2 | 0.06 | 1.27 | 80 | 0.45 | 21.5 | 1.32 |
R0415-100K | 10 | 0.08 | 1 | 70 | 0.4 | 24.5 | 1.2 |
R0520-100K | 10 | 0.04 | 2.65 | 60 | 0.65 | 22.5 | 3.1 |
R0520-120K | 12 | 0.044 | 2.26 | 55 | 0.6 | 23.5 | 2.98 |
R0520-150K | 15 | 0.06 | 1.9 | 45 | 0.55 | 27.5 | 2.97 |
R0520-180K | 18 | 0.08 | 1.57 | 40 | 0.5 | 29.5 | 2.87 |
R0520-220K | 22 | 0.1 | 1.27 | 38 | 0.45 | 32.5 | 2.73 |
R0520-270K | 27 | 0.15 | 1 | 36 | 0.4 | 36.5 | 2.63 |
R0630-4R7K | 4.7 | 0.005 | 16.08 | 85 | 1.6 | 12.5 | 10.2 |
R0630-5R6K | 5.6 | 0.005 | 16.08 | 80 | 1.6 | 14.5 | 11 |
R0630-6R8K | 6.8 | 0.008 | 10.61 | 75 | 1.3 | 15.5 | 8.68 |
R0630-8R2K | 8.2 | 0.009 | 9.04 | 67 | 1.2 | 16.5 | 8.35 |
R0630-100K | 10 | 0.01 | 9.04 | 64 | 1.2 | 19.5 | 8.8 |
R0630-120K | 12 | 0.018 | 6.28 | 57 | 1 | 20.5 | 7.43 |
R0630-150K | 15 | 0.023 | 5.08 | 53 | 0.9 | 23.5 | 7.23 |
R0630-180K | 18 | 0.03 | 4.02 | 49 | 0.8 | 24.5 | 6.7 |
R0630-220K | 22 | 0.045 | 3.07 | 44 | 0.7 | 27.5 | 6.24 |
R0630-270K | 27 | 0.05 | 3.07 | 42 | 0.7 | 31.5 | 6.4 |
R0630-330K | 33 | 0.06 | 2.65 | 36 | 0.65 | 35.5 | 6.53 |
R0630-390K | 39 | 0.08 | 2.26 | 34 | 0.6 | 40.5 | 6.23 |
R0630-470K | 47 | 0.11 | 1.9 | 32 | 0.55 | 44.5 | 6.22 |
R0630-560K | 56 | 0.14 | 1.57 | 30 | 0.5 | 46.5 | 5.8 |
