Single Phase R Core Power Transformer
Silicon Steel Sheet Core R Type Single Phase Power Transformers Rated power: 0.25 to 60VA Input: double 110V, 115V, 1...
Product Description:
·Small size, low weight, high efficiency
·Low level of radiated magnetic field
·Work frequency: 50/60 Hz
·Available in a variety of sizes
·Independent intellectual property rights
·Customized specifications are accepted
Silicon Steel Sheet Core R Type Single Phase Power Transformers
Rated power: 0.25 to 60VA
Input: double 110V, 115V, 120V

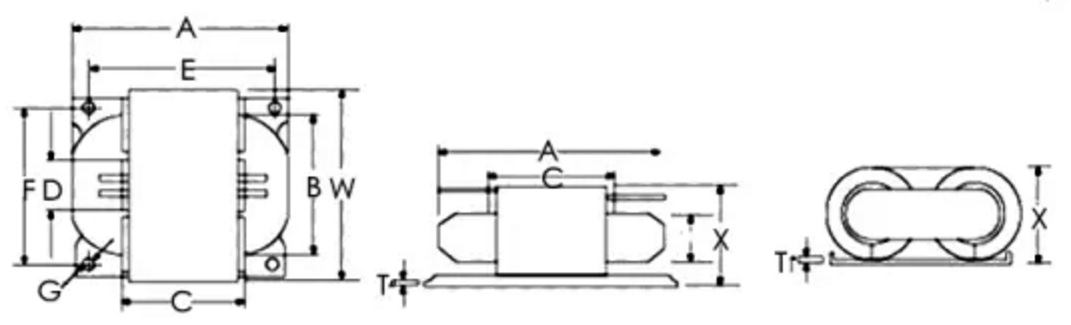

| Model | Power (W) | Size dimension (mm) | Weight (KG) | |||||
| A | W | X | E | F | G | |||
| R-5 | 2/6 | 58 | 47 | 26 | 45 | 33 | 4 | 0.2 |
| R-8 | 7/10 | 70 | 61 | 33 | 53 | 44 | 4 | 0.3 |
| R-10 | 11/15 | 75 | 61 | 37 | 68 | 48 | 4 | 0.4 |
| R-20 | 20-24 | 82 | 70 | 39 | 56 | 46 | 4X7 | 0.5 |
| R-25 | 25-34 | 83 | 72 | 42 | 70 | 55 | 4 | 0.6 |
| R-30 | 35-44 | 97 | 77 | 42 | 70 | 60 | 5 | 0.7 |
| R-40 | 45-54 | 99 | 80 | 44 | 70 | 60 | 5 | 0.9 |
| R50 | 55-65 | 102 | 90 | 48 | 75 | 65 | 5 | 1 |
| R-65 | 65-80 | 105 | 95 | 51 | 90 | 65 | 5 | 1.2 |
| R80 | 70-95 | 125 | 90 | 52 | 90 | 70 | 5 | 1.4 |
| R100 | 96-130 | 126 | 103 | 55 | 100 | 80 | 5 | 1.7 |
| R160 | 131-200 | 140 | 115 | 63 | 100 | 85 | 5 | 2.5 |
| R260 | 201-280 | 160 | 121 | 66 | 130 | 95 | 5 | 3.4 |
| R320 | 290-370 | 163 | 128 | 70 | 135 | 95 | 5 | 3.8 |
| R600 | 371-640 | 190 | 145 | 85 | 142 | 100 | 8 | 6.3 |
| R1000 | 650-1250 | 227 | 172 | 99 | 180 | 140 | 8 | 10 |
| R1500 | 1300-1800 | 238 | 180 | 102 | 175 | 145 | 8 | 14 |
| R2000 | 1800-2500 | 240 | 200 | 105 | 185 | 160 | 8 | 16.5 |
| R3000 | 2500-3500 | 260 | 226 | 125 | 200 | 180 | 8 | 23.5 |
| R5000 | 4000-5500 | 390 | 300 | 180 | 300 | 240 | 8 | 40 |
For more details, please contact us, we will provide you with technical services as soon as possible.
